Grind Master Sample Preparation Machine

Grinding machine for sample preparation for spectral analysis
Price:

on request
Delivery time:

please, contact the manager

Request a quote

High-quality preparation of flat surfaces on metal samples for spectral analysis with maximum operator comfort.

The optimal solution for:

  • Testing laboratories
  • Industrial metallurgy and foundry laboratories
  • Research centers and quality control departments (QC)

⭐

Ideal for steels, cast irons, nickel, cobalt and titanium alloys.

✔️

Also effective on most aluminum and copper alloys.

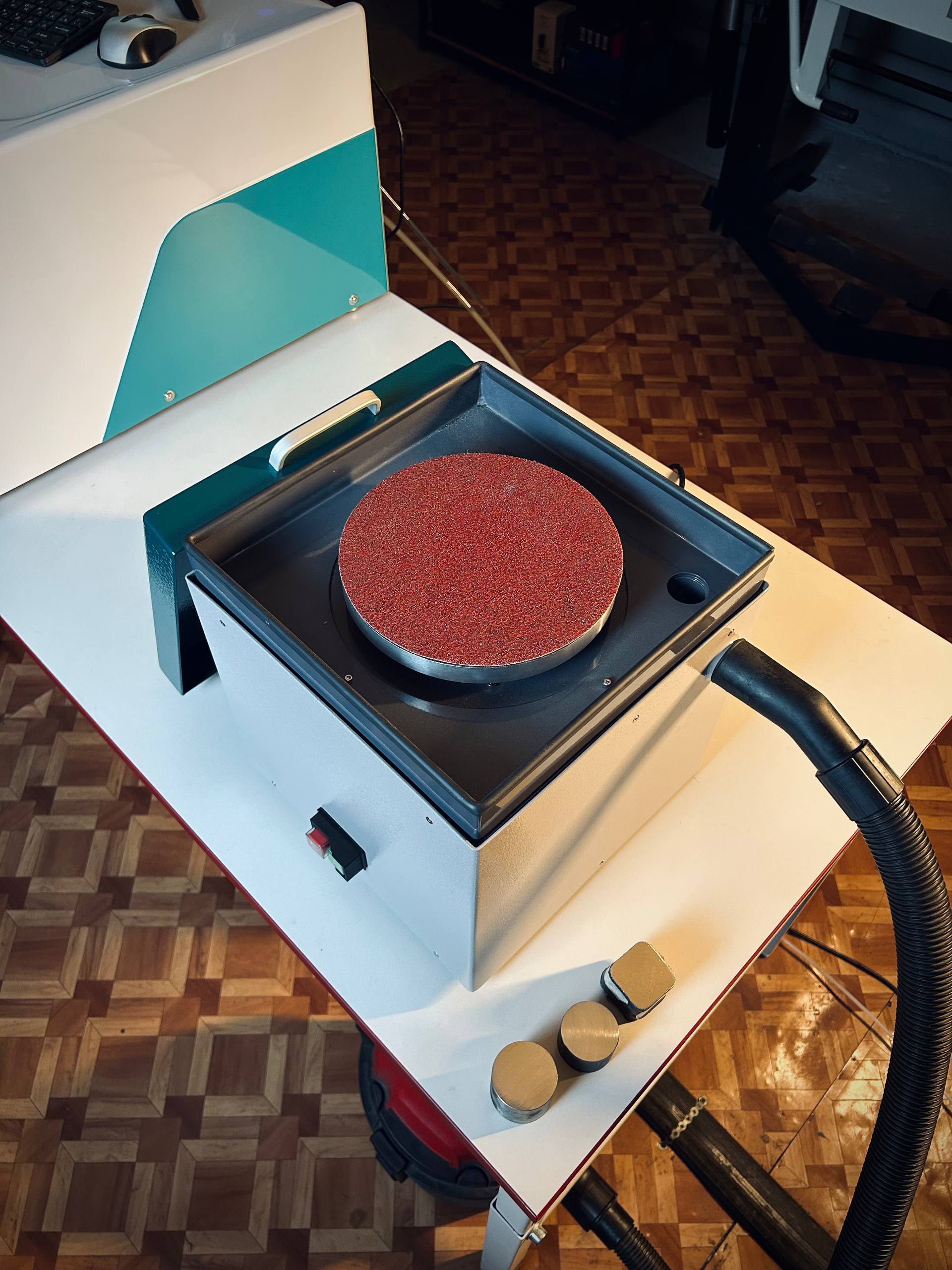

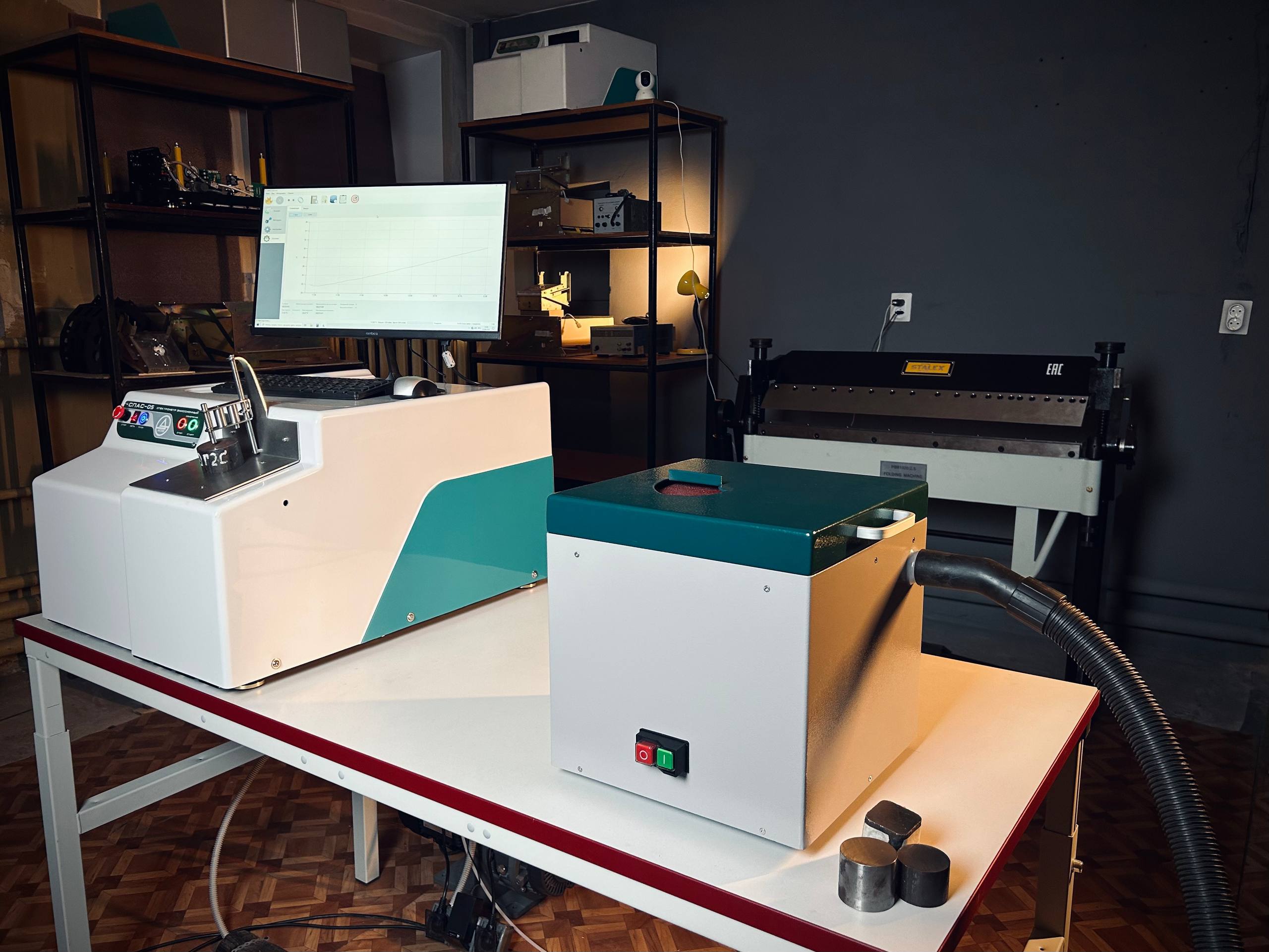

Grind Master Grinding Machine Grind Master Grinding Machine Grind Master Grinding Machine

3 Main Advantages for Your Laboratory:

✅

Quick disc change

Velcro fixation (hook-and-loop fastener)

✅

Cleanliness in the working area

Two operating modes to choose from:

  • Standalone — built-in dust collection system for routine tasks
  • Maximum cleanliness — connection to an external dust extractor, allowing the machine to be placed right next to a spectrometer

✅

Safety

Protective cover with a viewing window for process monitoring

Specifications

Disc diameter 200 mm
Disc attachment type Velcro (hook-and-loop)
Rotational speed 1330 rpm
Power 400 W
Power supply 220 V, 50 Hz
Dimensions (L x W x H) 350 x 336 x 300 mm
Weight 22 kg

Included in the package:

  • Grinding machine — 1 pc.
  • Abrasive discs (with Velcro) — 100 pcs.
  • Operating manual and passport — 1 pc.
  • Power cable — 1 pc.
